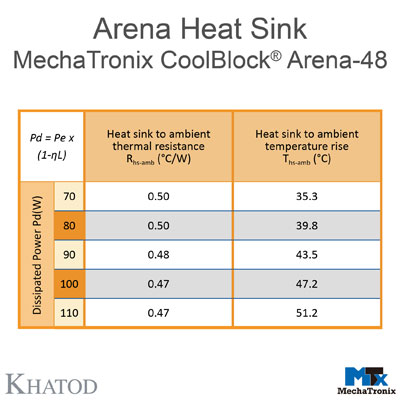

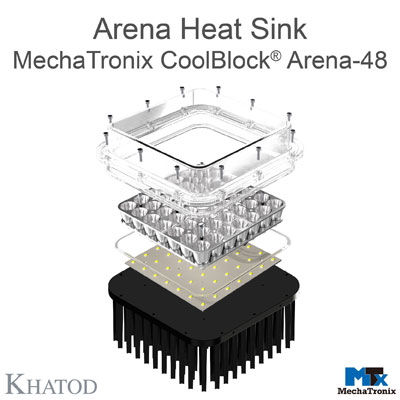

KHS55 Heatsink for KCLP48xxCRSM Arena Reflectors

– Do not handle or install lenses without wearing gloves, skin oils may damage lens or light transmission
– Clean lenses with mild soap and water and a soft cloth
– Do not use any commercial cleaning solvents on lenses

The adhesives listed below work well to bond an optical component to a given PCB type. The adhesives listed also are generally safe to use with most LEDs on the market. We strongly recommend that every customer fully tests and takes the necessary measures to ensure that there is complete compatibility of the glue when used with his particular product, LEDs and other components. Testing and verifying of the adhesives and their combinations has always to be the customer’s responsability.
Please take note of the Instructions of Use.

Loctite^® Hysol^® 9466 A&B [ read more on Loctite^® web site ]

The optical values shown are the result of optical simulations carried out with ASAP and ZEMAX software systems.
The optical simulations are carried out on the basis of the typical values provided in the LED manufacturers’ official datasheets. The photometric analysis has been carried out on physical samples. On request, by supplying your PCB, we can provide the measurement photometric file.

General Optical Measurement Tolerance : ± 10%

Please note that flow lines and weld lines on the external surfaces of the lenses are acceptable if the optical performance of the lens is within the specifications.
